Choose your #Citrix #NetScaler … wisely… – via @hlouwers
This is a question I get a lot and I must say that Henny Louwers did answer it well in this blog post!
I spend a lot of my time breaking down the different models of Citrix NetScaler appliances and different Software Editions within the Citrix NetScaler portfolio.
I decided to set up a blog about this since the path is usually pretty much (lengthy but) the same. This does not mean the answer is always easy because there are a lot of questions that need to be answered.
The first thing I would like to get off my chest is the following: Stop seeing/selling the Citrix NetScaler as a replacement for Secure Gateway. It is so much more than that. I often have discussions with various engineers and consultants telling me that Citrix NetScaler is so expensive for a Remote Access solution because Secure Gateway always used to be free. No offense but a Citrix NetScaler solution belongs to the networking department, not the Citrix XenApp sys admin department. Or maybe limited.
That leads me to the first difficult thing of a Citrix NetScaler project. The adoption of the Citrix NetScaler appliances to the networking guys of an organization. They need to embrace the solution to make this a success. For some reason they too see it as a ‘’Citrix’’ solution. For that reason one of the most important meetings to setup is usually with the networking guys to try to explain the L3-L7 functionality of the Citrix NetScaler solution. When they realize it competes with F5, Juniper, Cisco, etc then we are on the right track.
NetScaler Gateway or NetScaler Standard Edition
Usually the first question of a customer is regarding something simple like replacing the Remote Access solution. Since the NetScaler is going to be the main platform for publishing Citrix publications a NetScaler Gateway can be considered as a valid option. This is when I tell a customer it would be wise to spend a little extra on the NetScaler Standard Edition since this would leverage the solution be having full load balancing capabilities (among others). When you compare prices between the NetScaler Gateway and NetScaler Standard Edition you will see that the Standard Edition will be somewhat more expensive but I for one think that it is worth the difference given the feature set that come with the Standard Edition. Of course the NetScaler Gateway can always be upgraded to a NetScaler Standard Edition (or higher) if you will.
Another feature of Citrix NetScaler Standard Edition is the ability to run Citrix Web Interface on the appliance. Honestly, I do think is not really that important anymore….
Continue reading here!
//Richard
Content Switching instead of Load balancing of XenApp XML brokers? – #XenApp #NetScaler #CS #LB
Ok, I was contacted by another colleague today again about a customer and their setup of XenApp load balancing. They of course had NetScalers and had read the guidelines and best practises from Citrix on how to do load balancing and monitoring of XML brokers. But they had the same issue that many have, they had to contact the network team when they needed to add farms that they should load balance, and they needed an IP for each LB vServer per XenApp farm…
And this is not the first time I’ve seen this… why doesn’t people use Content Switching instead when doing load balancing of their XenApp farms (and other resources as well of course!)?
This is the Citrix picture on how to do it;
But what I’d do instead and recommend is to use Content Switching (CS) instead. Setup a CS vServer with an IP and an A-record in DNS, in the picture below it’s the one with bogus IP 10.10.10.10 and FQDN of cs8080.envokeit.local.
Then what you do is to configure a CNAME alias for each of your farms in DNS, like farm1.envokeit.local that you can see in the picture. Have the CNAME to be an alias of the CS you just created. Then in the NetScaler you setup your LB vServers just like you’ve always done and create the Service Group and add the correct monitors etc. to it. And remember that you in this case don’t have to have an IP set on the LB vServers, these don’t have to be directly addressable from the network, only through your CS that you just setup.
Then on the CS create your policies to do CS on the hostname of the incoming requests to the respective LB vServer. No more requesting IP’s per farm and all of that, one IP and you can support MANY farms…. I just love CS! 🙂
Happy content switching! 😉
//Richard
#NetScaler #SDX design and best practise
Ok, I understand that this is something that I’ve touched upon before as well and received some comments on (NetScaler MPX vs. SDX dilemma). But I’ll still continue the reasoning behind why I think that the NetScaler SDX architecture is great, and that is needs to be offered on all the different platforms/appliance types/sizes!
To kick off the reasoning I recommend that you read this post; #NetScaler #AAA on NS 10.00 Build 70.7 = watch out!. When you’ve read both previous posts I hope that you see where I’m now going with all of this…

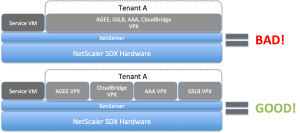

Just have a look at this picture where I’m trying to illustrate two design options for how you could build your NetScaler service for a tenant;
And if you then keep in mind about the AAA bug that caused the whole NetScaler engine to crash, what happens in the top scenario if this VPX had been affected? Think about if that NetScaler hosted network connectivity to you public cloud services with workloads, all SSL VPN users connected to the enterprise, all ICA/HDX proxy users into XenApp/XenDesktop, and also provided AAA features to the enterprise web apps used by customers and partners etc.? Wow, that would actually mean that one single 401 basic authentication could have taken down EVERYTHING!
But; if you would have separated your capabilities/features into separate VPX’s then you wouldn’t have had that issue. The “only” thing that would have happened if you ran into an issue that caused the NetScaler to crash then it would only affect that VPX (AAA VPX in the scenario above).
So my personal view is that it’s great that Citrix provides all the features on one appliance/instance. But it also adds quality and test efforts on Citrix to ensure that they perform testing of ALL features and functions before releasing a new build. And that may affect the lead-time to get fixes and new builds released and quality may also be impacted… and that’s what I’m afraid of is happening. So a little word of advice; separate workloads/features when you can and when you don’t want this big of a risk, and prey that Citrix soon delivers the SDX architecture on all appliances! And they would of course perhaps not just sell the larger boxes like they force us into today even if the bandwidth capabilities of that box isn’t required. But they would instead sell more VPX’ on top of the HW, that’s at least what I think.
Comments?
Cheers!
//Richard
NetScaler MPX vs. SDX dilemma
Hi again!
Ok, I may be totally off and wrong here but I see a bit of a problem with the Citrix product packaging and offering around the whole NetScaler product.
I love the fact that the product is available as virtual appliances (VPX) and physical appliances (MPX) and the lovely “mix-product” which is the SDX platform. The SDX is a lovely addition and I see so many reasons for why you want to go towards that platform, so bear with me.
The NetScaler product itself is a great product and the feature set it rich! It’s definitely rich in terms of what features it offers from the same appliance! Some of the marketing of the product against competitors is that you can do it all (GSLB, LB, SSL offloading, SSL VPN, Application Firewall, ICA/HDX proxy etc.) on one appliance instead of purchasing several. Have a look at the editions of the product and the rich feature offering;
But I must challenge this whole idea of putting all features/capabilities on one appliance! What if you decide to build a service on the NetScaler product and decide to provide these capabilities;
- Access Gateway
- Network Connect (SSL VPN access)
- Network Proxy (ICA/HDX proxying)
- End-to-end Web Security (AAA etc.)
- Load Balancing (LB, GSLB)
So imagine that if for some reason you need a new version of the NetScaler appliance or if Citrix provides a fix for a bug/issue that is related to one of the capabilities. Then you have to stop your whole service delivery of all of them just to apply a patch/update targeted for one of them. Is that good from an incident, problem, change management point of view? I guess that’s why I like the SDX platform where I then can put the capabilities on different VPX instances on the same SDX HW platform.
This then also leads you to the whole cost of the service if you also like this idea of separation of duties, how much does the SDX cost and what does the VPX instances cost (they are purchased in bundles of 5 where 5 is included with the SDX purchase). And except for the cost of the HW, SW and SA you have the complexity that you have to select which of the SDX platforms to choose (see a more detailed NetScaler Datasheet here). And this is the biggest issue as I see it! I’d like to recommend the SDX platform to more customers than the enterprise segment. But then you have an issue, the SDX platforms starts on the 11 500 appliance.
Why doesn’t Citrix offer the SDX model on the smaller appliances?? I’d like to understand that because I think that most customers out there will not require that much throughput or CCU etc that the 11 500 delivers….
And there are more reasons to why you would like an SDX model other than separation of duties.. but more on that in another post.
Cheers!
//Richard
